PA1223 Datasheet, Amplifier, Tyco Electronics

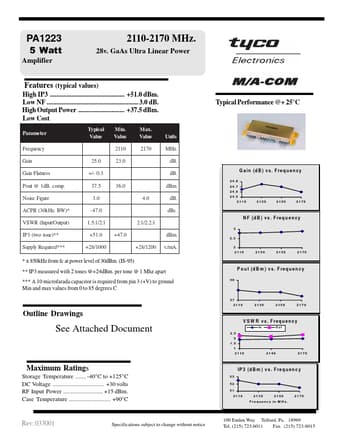

PA1223 Features

• Amplifier (typical values) High IP3 +51.0 dBm. Low NF 3.0 dB. High Output Power +37.5 dBm. Low Cost Parame te r Frequency Gain Gain Flatness Pout @ 1dB. comp. Noise Figure ACPR (30kHz. BW)

PDF File Details

Part number:

PA1223

Manufacturer:

Tyco Electronics

File Size:

66.23kb

Download:

📄 Datasheet

Description:

2110-2170 mhz. 5 watt 28v. gaas ultra linear power amplifier.
