PA1224 Datasheet, Amplifier, Tyco Electronics

PA1224 Features

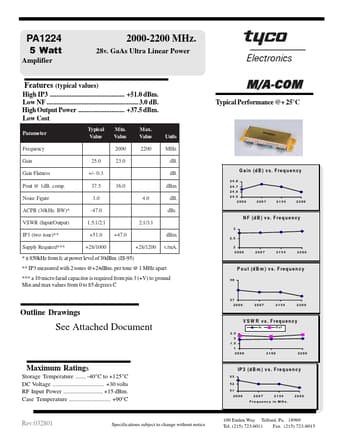

• Amplifier (typical values) High IP3 +51.0 dBm. Low NF 3.0 dB. High Output Power +37.5 dBm. Low Cost Parame te r Frequency Gain Gain Flatness Pout @ 1dB. comp. Noise Figure ACPR (30kHz. BW)

PDF File Details

Part number:

PA1224

Manufacturer:

Tyco Electronics

File Size:

66.32kb

Download:

📄 Datasheet

Description:

2000-2200 mhz. 5 watt 28v. gaas ultra linear power amplifier.
