PA61 Datasheet, Amplifiers, APEX

PA61 Features

  • Amplifiers
  • WIDE SUPPLY RANGE
      – ±10 to ±45V
  • HIGH OUTPUT CURRENT
      – ±10A Peak
  • LOW COST
      – Class “C” output stage

PDF File Details

Part number:

PA61

Manufacturer:

APEX

File Size:

482.00kb

Download:

📄 Datasheet

Description:

Power operational amplifiers. The PA61 and PA61A are high output current operational amplifiers designed to drive resistive, inductive and capacitive loads. Their

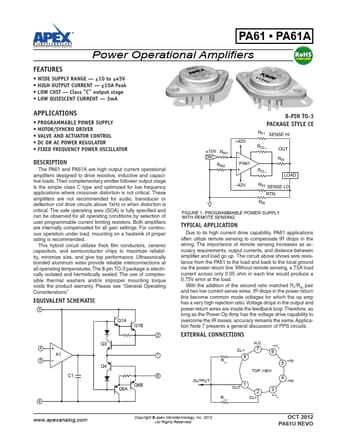

Datasheet Preview: PA61 📥 Download PDF (482.00kb)
Page 2 of PA61 Page 3 of PA61

PA61 Application

  • Applications
  • PROGRAMMABLE POWER SUPPLY
  • MOTOR/SYNCRO DRIVER
  • VALVE AND ACTUATOR CONTROL
  • DC OR AC POWER REGULAT
