SWR200 Precision Sine Wave Reference

APEX

Description

SWR200 SWSRW2R02000 Precision Sine Wave Reference .
SWR200 is a Precision Sine Wave Reference providing an ultra stable sine wave output of +7.

📥 Download Datasheet

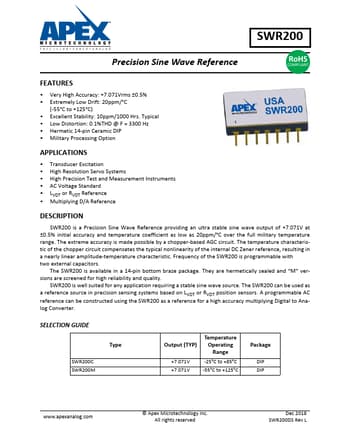

SWR200 Datasheet Preview — Preview of SWR200 PDF

Datasheet Specifications

Part number: SWR200
Manufacturer: APEX
File Size: 1.43 MB
Datasheet: SWR200-APEX.pdf
Description: Precision Sine Wave Reference

Features

* Very High Accuracy: +7.071 Vrms ±0.5%
* Extremely Low Drift: 20 ppm/°C (-55°C to +125°C)
* Excellent Stability: 10 ppm/1000 Hrs. Typical
* Low Distortion: 0.1% Thd @ f = 3300 Hz
* Hermetic 14-pin Ceramic DIP
* Military Processing Option APPLICATI

Applications

* Transducer Excitation
* High Resolution Servo Systems
* High Precision Test and Measurement Instru- ments
* AC Voltage Standard
* LVDT Or RVDT Reference
