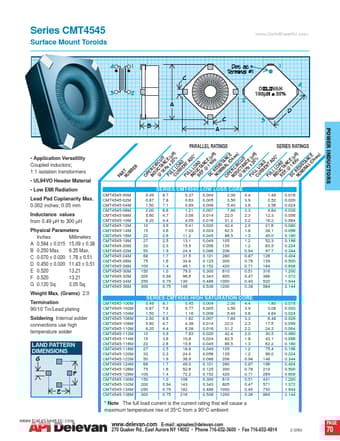

Series CMT4545 Surface Mount Toroids www.DataSheet4U.com POWER INDUCTORS PARALLEL RATINGS SERIES RATINGS UL94VO Header Material Low EMI Radiation Lead Pad Coplanarity Max.

0.002 inches; 0.05 mm Inductance values from 0.49 µH to 300 µH Physical Parameters Inches Millimeters A 0.594 ± 0.015 15.09 ± 0.38 B 0.250 Max.

6.35 Max.

C 0.070 ± 0.020 1.78 ± 0.51 D 0.450 ± 0.020 11.43 ± 0.51 E 0.520 13.21 F 0.520 13.21 G 0.120 Sq.

3.05 Sq.

Weight Max.

(Grams) 2.0 Termination 90/10 T
