CMT-555 - HIGH TEMPERATURE RANGE 555 TIMER

Product Overview

Datasheet Details

Part number	CMT-555
Manufacturer	CISSOID
File Size	804.31 KB
Description	HIGH TEMPERATURE RANGE 555 TIMER
Datasheet	CMT-555 Datasheet

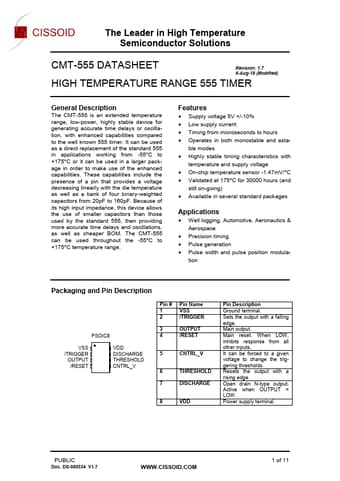

Additional preview pages of the CMT-555 datasheet.

Product details

Description

The CMT-555 is an extended temperature range, low-power, highly stable device for generating accurate time delays or oscillation, with enhanced capabilities compared to the well known 555 timer.

Features

Supply voltage 5V +/-10%.
Low supply current.
Timing from microseconds to hours.
Operates in both monostable and asta- ble modes.
Highly stable timing characteristics with temperature and supply voltage.
On-chip temperature sensor -1.47mV/°C.
Validated at 175°C for 30000 hours (and still on-going).
Available in several standard packages.
