CMT-74132 Datasheet - CISSOID

Quad 2-Input NAND Schmitt Trigger

CMT-74132 Features

* Qualified from -55 to +175°C (Tj)

* 3.3 to 5V (±10%) supply voltages

* Latchup-free at any supply and tem- perature condition

* Validated at 175°C for 20000 hours (and still on-going)

* Available in plastic SOIC16 standard package Applications

* High

CMT-74132 General Description

The CMT-74132 contains four independent 2-input NAND gates with Schmitt Trigger, performing the Boolean function : Y =AB The gate switches at different points for positive and negative going signals. The difference between the positive voltage VT+ and the negative voltage VT- is defined as the hyst.

CMT-74132 Datasheet (199.43 KB)

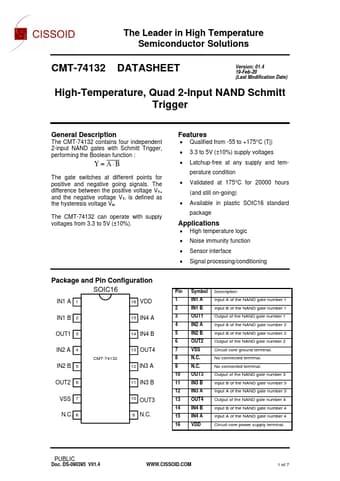

Preview of CMT-74132 PDF

Datasheet Details

Part number:

CMT-74132

Manufacturer:

CISSOID

File Size:

199.43 KB

Description:

Quad 2-input nand schmitt trigger.
The Leader in High Temperature Semiconductor Solutions CMT-74132 DATASHEET Version: 01.4 19-Feb-20 (Last Modification Date) High-Temperature, Quad .
