CMT-ANTARES Datasheet - CISSOID

5V Linear Voltage Regulator

CMT-ANTARES Features

* Junction operating temperature o from -55°C to 175°C

* Input voltage: 5.5V to 30V

* Output voltage : 5V

* Output voltage total accuracy: ±5%

* Output current: 200mA max

* Min voltage dropout @ 100mA: 1.2V

* Line regulation: -1% max

* Load regulation: -0.4% typ

CMT-ANTARES General Description

CMT-ANTARES is a high-temperature, highreliability, 200mA adjustable linear voltage regulator suitable to generate from a +4.5V to +30V voltage source a regulated 5V voltage. The operating junction temperature ranges from -55°C to +175°C and can possibly go outside that range with some de-rating of .

CMT-ANTARES Datasheet (604.57 KB)

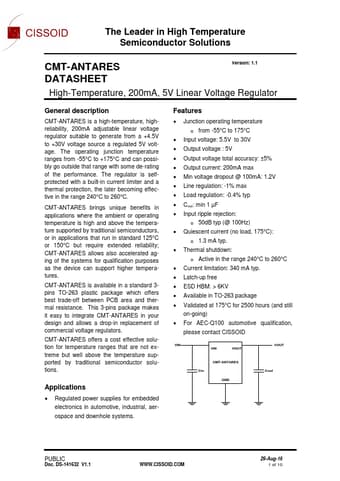

Preview of CMT-ANTARES PDF

Datasheet Details

Part number:

CMT-ANTARES

Manufacturer:

CISSOID

File Size:

604.57 KB

Description:

5v linear voltage regulator.
The Leader in High Temperature Semiconductor Solutions CMT-ANTARES DATASHEET Version: 1.1 High-Temperature, 200mA, 5V Linear Voltage Regulator Gen.
