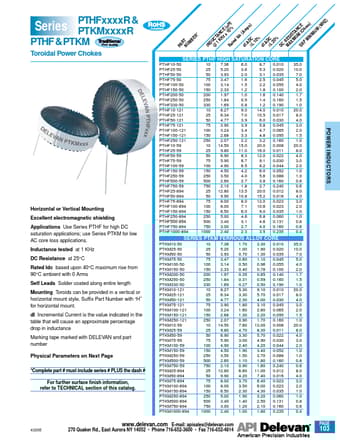

PTKM150-59, PTKMxxxxR, Surface Mount Toroidal Power Chokes

Toroidal Power Chokes Horizontal or Vertical Mounting Excellent electromagnetic shielding Applications Use Series PTHF for high DC saturation applica.

PTKMxxxxR_APIDelevan.pdf

PTKM150-59 Datasheet Preview — This datasheet PDF includes multiple part numbers: PTKM150-59, PTKMxxxxR. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PTKM150-59, PTKMxxxxR

Manufacturer:

API Delevan

File Size:

100.22 KB

Description:

Surface Mount Toroidal Power Chokes

Note:

This datasheet PDF includes multiple part numbers: PTKM150-59, PTKMxxxxR.
Please refer to the document for exact specifications by model.

Applications

* Use Series PTHF for high DC saturation applications; use Series PTKM for low AC core loss applications. Inductance tested at 1 KHz DC Resistance at 25°C Rated Idc based upon 40°C maximum rise from 90°C ambient with 0 Arms Self Leads Solder coated along entire length Mounting Toroids can be provided
