PTK94N50FD 500V N-Channel MOSFET

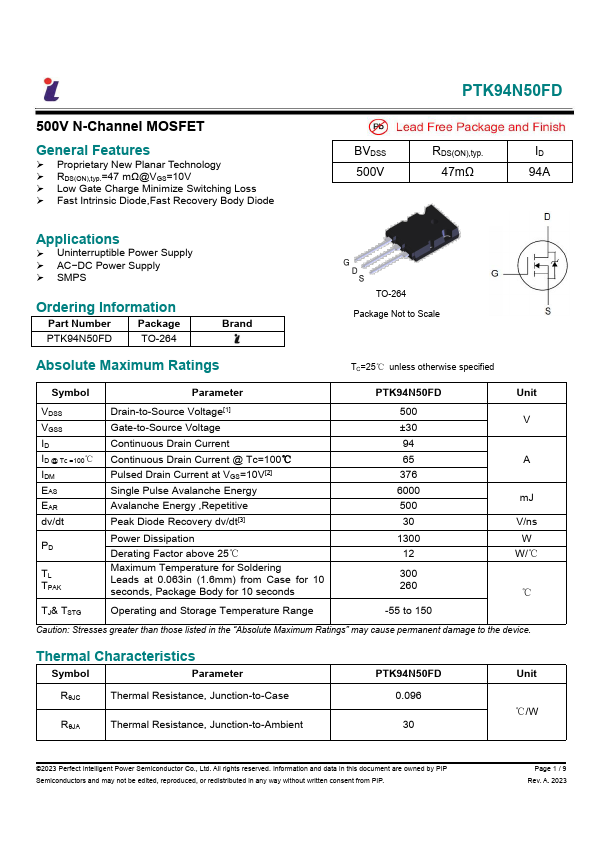

📥 Download Datasheet  Datasheet Preview Page 1

Description

500V N-Channel MOSFET General .

📥 Download Datasheet

Preview of PTK94N50FD PDF

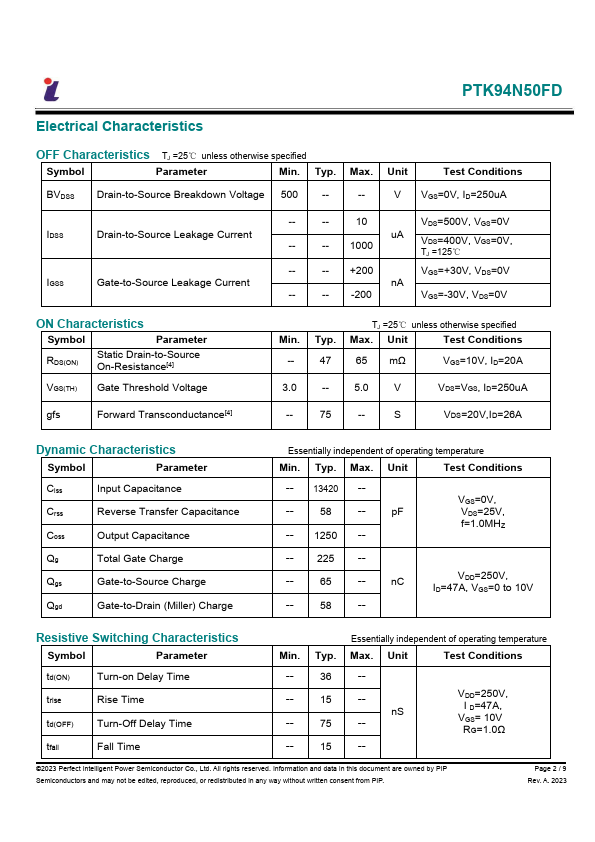

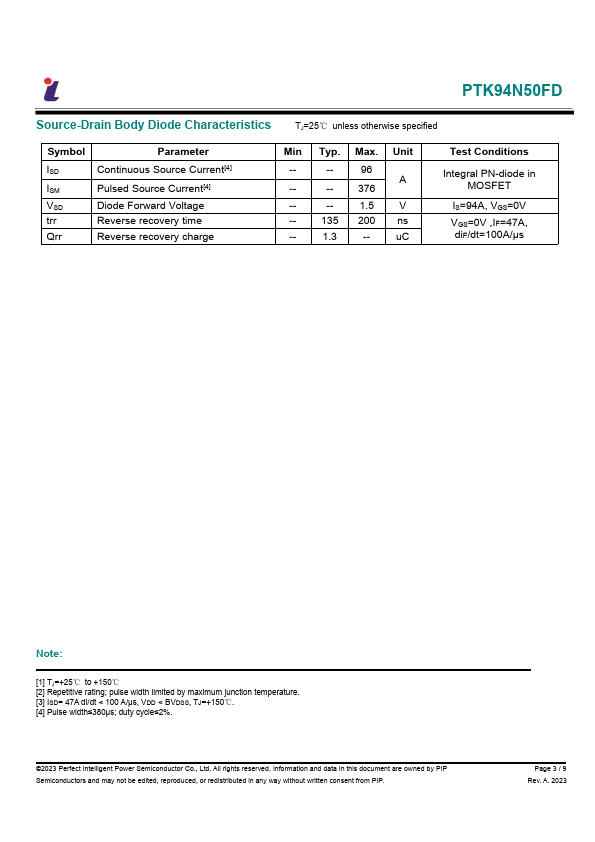

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PTK94N50FD
Manufacturer
PIP
File Size
2.79 MB
Datasheet
PTK94N50FD-PIP.pdf
Description
500V N-Channel MOSFET

Features

* Proprietary New Planar Technology
* RDS(ON),typ. =47 mΩ@VGS=10V
* Low Gate Charge Minimize Switching Loss

Applications

* Uninterruptible Power Supply
* AC
* DC Power Supply
* SMPS Ordering Information Part Number Package PTK94N50FD TO-264 Brand TO-264 Package Not to Scale Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol Parameter PTK94N50FD Unit VDSS VGSS ID ID @ Tc =
