APG120N12T, APG120N12P Datasheet - APM

APG120N12T 120V N-Channel Enhancement Mode MOSFET

APG120N12PIT 120V N-Channel Enhancement Mode MOSFET The APG120N12PIT uses advanced SGT II technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General.

APG120N12T Features

* VDS = 120V ID =120A RDS(ON) < 6.8mΩ @ VGS=10V （Type：6.0mΩ） Application Mobile phone fast charging Brushless motor Home appliance control board Package Marking and Ordering Information Product ID Pack Marking APG120N12P TO-220-3L APG120N12P XXX YYYY APG120N12T TO-263-3L APG120N12T XXX YYY

APG120N12P-APM.pdf

This datasheet PDF includes multiple part numbers: APG120N12T, APG120N12P. Please refer to the document for exact specifications by model.

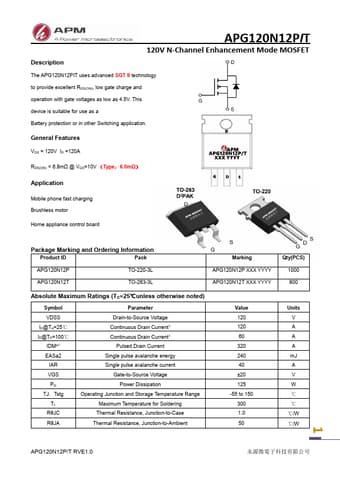

APG120N12T Datasheet Preview Page 2 APG120N12T Datasheet Preview Page 3

Datasheet Details

Part number:

APG120N12T, APG120N12P

Manufacturer:

APM

File Size:

1.62 MB

Description:

120v n-channel enhancement mode mosfet.

Note:

This datasheet PDF includes multiple part numbers: APG120N12T, APG120N12P.
Please refer to the document for exact specifications by model.
