AT32WB415 - 32-bit Wireless BLE MCU

AT32WB415 Datasheet Preview — Preview of AT32WB415 PDF

Datasheet Details

Part number	AT32WB415
Manufacturer	ARTERY
File Size	1.48 MB
Description	32-bit Wireless BLE MCU
Datasheet	AT32WB415-ARTERY.pdf

AT32WB415 Product details

Description

8 2 Wireless Bluetooth functionality overview 11 2.1 Introduction 11 2.2 General-purpose I/Os (GPIO) 11 2.3 PWM timers11 2.4 Watchdog 11 2.5 Universal asynchronous receiver transmitter (UART) 11 2.6 Security 11 3 MCU functionality overview 12 3.1 ARM® Cortex®-M4 12 3.2 Memory 12 3.2.1 Flash memory12 3.2.2 Memory protection unit (MPU) 12 3.2.3 Embedded SRAM12 3.3 Interrupts 12 3.3.1 Nested vectored interrupt controller (NVIC)12 3.3.2 External interrupts (EXINT) 12 3.4 Power control (P

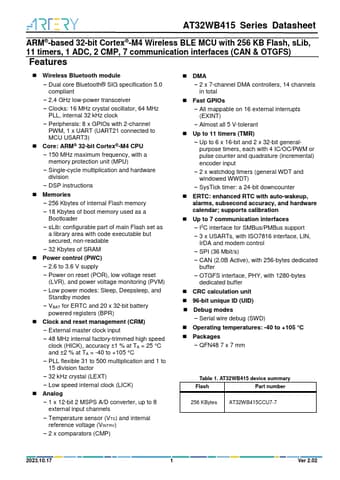

Features

Wireless Bluetooth module.
Dual core Bluetooth® SIG specification 5.0 compliant.
2.4 GHz low-power transceiver.
Clocks: 16 MHz crystal oscillator, 64 MHz PLL, internal 32 kHz clock.
Peripherals: 8 x GPIOs with 2-channel PWM, 1 x UART (UART21 connected to MCU USART3).
Core: ARM® 32-bit Cortex®-M4 CPU.
150 MHz maximum frequency, with a memory protection unit (MPU).
Single-cycle multiplication and hardware division.
DSP inst.
