AHT21 - Humidity and Temperature Sensor

Description

HVAC, dehumidifier, testing and inspection equipment, consumer products, automobiles, automatic control, data loggers, weather stations, home appliances, humidity control, medical and other related temperature and humidity detection and control.

Figure 1.

📥 Download Datasheet

Datasheet preview – AHT21

Datasheet Details

Part number AHT21
Manufacturer ASAIR
File Size 0.97 MB
Description Humidity and Temperature Sensor
Datasheet download datasheet AHT21 Datasheet
Additional preview pages of the AHT21 datasheet.

📁 Similar Datasheet

Other Datasheets by ASAIR
  • AHT21B - Humidity and Temperature Sensor
  • AHT20 - Humidity and Temperature Sensor
  • AHT10 - Temperature and humidity sensor

Full PDF Text Transcription

Click to expand full text

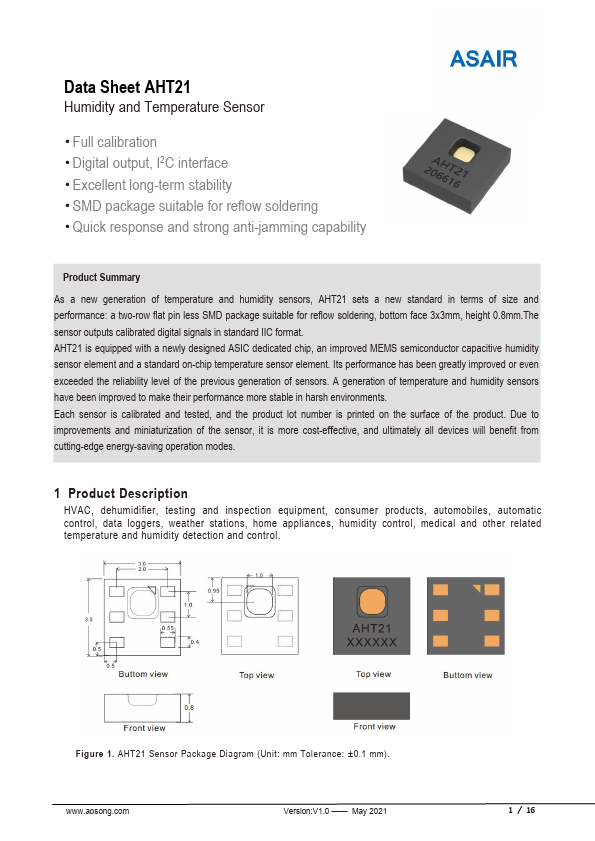

Data Sheet AHT21 Humidity and Temperature Sensor •Full calibration •Digital output, I2C interface •Excellent long-term stability •SMD package suitable for reflow soldering •Quick response and strong anti-jamming capability Product Summary As a new generation of temperature and humidity sensors, AHT21 sets a new standard in terms of size and performance: a two-row flat pin less SMD package suitable for reflow soldering, bottom face 3x3mm, height 0.8mm.The sensor outputs calibrated digital signals in standard IIC format. AHT21 is equipped with a newly designed ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor element and a standard on-chip temperature sensor element.
