AWB31D7 - CATV Push-pull Amplifier MMIC

ASB

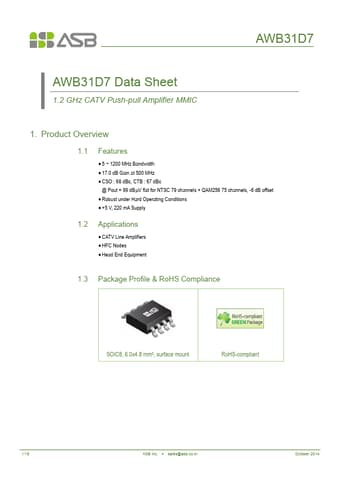

AWB31D7 Datasheet Preview — Preview of AWB31D7 PDF

Datasheet Details

Part number	AWB31D7
Manufacturer	ASB
File Size	649.76 KB
Description	CATV Push-pull Amplifier MMIC
Datasheet	AWB31D7-ASB.pdf

AWB31D7 Product details

Description

1, 4 RF_IN 2 Current Adjustable 7 VCG Adjustable 5, 8 RF_ OUT 3, 6 NC or GND Simplified Outline 1 2 Bias Circuit 3 4 8 7 6 5 Note: Backside metal paddle is RF and DC ground.2.4 Absolute Maximum Ratings Parameters Operation Case Temperature Storage Temperature Device Voltage Maximum Current Operation Junction Temperature Input RF Power (CW, 75  matched) Max.Ratings -40 to 85 C -40 to 150 C +10 V 450 mA +160 C +25 dBm 2.5 Thermal Resistance Symbol Rth Description Thermal resistanc

Features

5 ~ 1200 MHz Bandwidth.
17.0 dB Gain at 500 MHz.
CSO : 68 dBc, CTB : 67 dBc @ Pout = 99 dBV flat for NTSC 79 channels + QAM256 75 channels, -6 dB offset.
Robust under Hard Operating Conditions.
+5 V, 220 mA Supply 1.2.
