AWB51D7 - 1.2GHz CATV Push-pull Amplifier MMIC

ASB

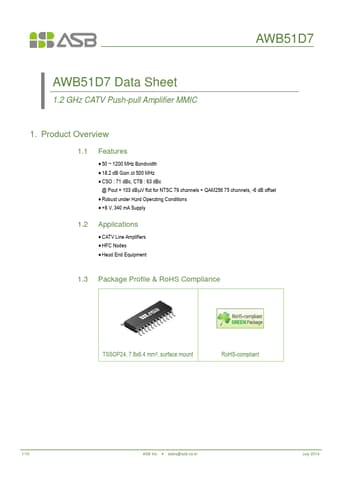

AWB51D7 Datasheet Preview — Preview of AWB51D7 PDF

Datasheet Details

Part number	AWB51D7
Manufacturer	ASB
File Size	377.76 KB
Description	1.2GHz CATV Push-pull Amplifier MMIC
Datasheet	AWB51D7-ASB.pdf

AWB51D7 Product details

Description

RF_IN Current Adjustable VCG Adjustable RF_ OUT NC or GND Simplified Outline Note: Backside metal paddle is RF and DC ground.2.4 Absolute Maximum Ratings Parameters Operation Case Temperature Storage Temperature Device Voltage Maximum Current Operation Junction Temperature Input RF Power (CW, 75  matched) Max.Ratings -40 to 85 C -40 to 150 C +10 V 450 mA +150 C +24 dBm 2.5 Thermal Resistance Symbol Rth Description Thermal resistance from junction to lead Typ Unit 9 C/W 2.6 ESD

Features

50 ~ 1200 MHz Bandwidth.
18.2 dB Gain at 500 MHz.
CSO : 71 dBc, CTB : 63 dBc @ Pout = 103 dBV flat for NTSC 79 channels + QAM256 75 channels, -6 dB offset.
Robust under Hard Operating Conditions.
+8 V, 340 mA Supply 1.2.
