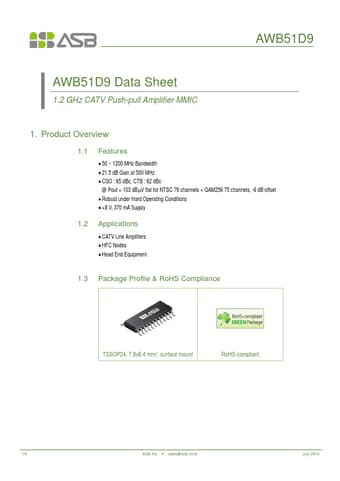

AWB51D9 Datasheet, Mmic, ASB

AWB51D9 Features

• Mmic
• 50 ~ 1200 MHz Bandwidth
• 21.5 dB Gain at 500 MHz
• CSO : 65 dBc, CTB : 62 dBc @ Pout = 103 dBµV flat for NTSC 79 channels + QAM256 75 channels, -6 dB offset <

PDF File Details

Part number:

AWB51D9

Manufacturer:

ASB

File Size:

278.59kb

Download:

📄 Datasheet

Description:

1.2ghz catv push-pull amplifier mmic. RF_IN Current Adjustable VCG Adjustable RF_ OUT NC or GND Simplified Outline Note: Backside metal paddle is RF and DC ground. 2.4

AWB51D9 Application

• Applications
• CATV Line Amplifiers
• HFC Nodes
• Head End Equipment 1.3 Package Profile & RoHS Compliance TSSOP24, 7.8x6.4
