X335 Datasheet - ASC Capacitors

X335 METALLIZED POLYPROPYLENE TAPE WRAP AND EPOXY FILL CASE

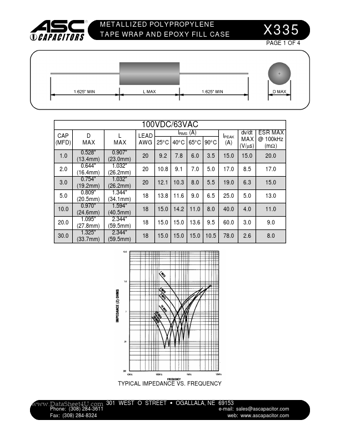

METALLIZED POLYPROPYLENE TAPE WRAP AND EPOXY FILL CASE X335 PAGE 1 OF 4 100VDC/63VAC CAP (MFD) 1.0 2.0 3.0 5.0 10.0 20.0 30.0 D MAX 0.528" (13.4mm) 0.644" (16.4mm) 0.754" (19.2mm) 0.809" (20.5mm) 0.970" (24.6mm) 1.095" (27.8mm) 1.325" (33.7mm) L MAX 0.907" (23.0mm) 1.032" (26.2mm) 1.032" (26.2mm) 1.344" (34.1mm) 1.594" (40.5mm) 2.344" (59.5mm) 2.344" (59.5mm) IRMS (A) LEAD AWG 25° C 40° C 65° C 90° C 20 20 20 18 18 18 18 9.2 10.8 7.8 9.1 6.0 7.0 8.0 9.0 11.0 13.6 3.5 5.0 5.5 6.5 8.0 9.5 IPEAK .

X335 Datasheet (208.00 KB)
