BM100-28

NPN SILICON RF POWER TRANSISTOR

BM100-28 Features

* Common Emitter

* PG = 8.5 dB at 20 W/175 MHz

* Omnigold™ Metalization System PACKAGE STYLE .500 6L FLG MAXIMUM RATINGS IC VCEO VCES VEBO PDISS TJ TSTG θJC O O 20 A 33 V 65 V 4.0 V 270 W @ TC = 25 C -65 C to +200 C -65 C to +150 C 0.65 C/W O O O O 1 = COLLECTOR 2 = BAS

BM100-28 Datasheet (48.05 KB)

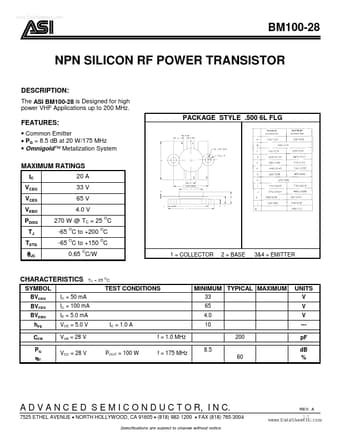

Preview of BM100-28 PDF

Datasheet Details

Part number:

BM100-28

Manufacturer:

ASI

File Size:

48.05 KB

Description:

Npn silicon rf power transistor.
