BM1117 - Adjustable and fixed voltage regulators

BM1117 Description

BM1117 GENERAL .
The BM1117 series of adjustable and fixed voltage regulators are designed to provide 1A output current and to operate down to 1V input-to-output diffe.

BM1117 Features

* Three Terminal Adjustable or Fixed Voltages

BM1117 Applications

* High Efficiency Linear Regulators Post Regulators for Switching Supplies  5V to 3.3V Linear Regulator  Power Management for Notebook  Battery Chargers  Battery Powered Instrumentation  Active SCSI Terminators ORDERING INFORMATION PACKAGE TYPE OPERATING JUNCTION TEMPERATURE RANGE 0 to 125° C

📥 Download Datasheet

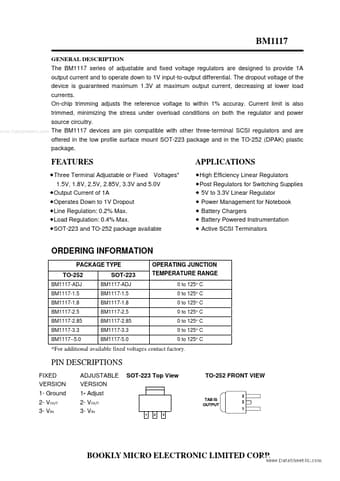

Preview of BM1117 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BM1117
Manufacturer
Bookly Microelectronic
File Size
257.37 KB
Datasheet
BM1117_BooklyMicroelectronic.pdf
Description
Adjustable and fixed voltage regulators
