BM1117N

1A Voltage High Speed LDO Regulators

BM1117N Features

* consist of output current limiting, safe operating area compensation, and thermal shutdown. The BM1117N series can operate with up to 18 V input. There is SOT23,SOT223,SOT89 and TO252 package. Features Output Current up to 1A Dropout Voltage: 500mV@ IOUT =800mA Operating Voltage Range: 1.6V̚16V Hig

BM1117N General Description

The BM1117N series are highly accurate, low noise, LDO Voltage Regulators that are capable of providing an output current that is in excess 910mA up to 1A with a maximum dropout of 0.5V, at 800mA. This series contains two fixed output voltages of 1.2V,1.5V,1.8V,2.5V,3.3 V, 5.0 V.On-chip trimming adj.

BM1117N Datasheet (539.41 KB)

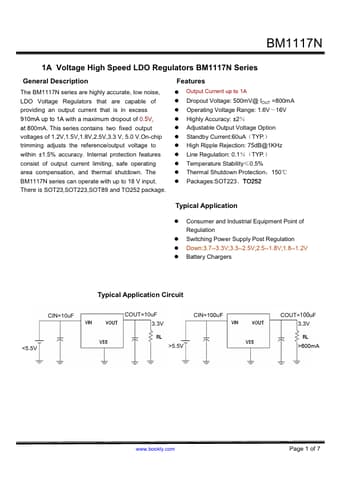

Preview of BM1117N PDF

Datasheet Details

Part number:

BM1117N

Manufacturer:

Bookly

File Size:

539.41 KB

Description:

1a voltage high speed ldo regulators.
