BM1122

Fixed voltage regulators

BM1122 Features

* Three Terminal Fixed Voltages 1.2V , 1.5V Output Current of 1A Operates Down to 1V Dropout Line Regulation: 0.2% Max. Load Regulation: 0.4% Max. SOT-223 package available APPLICATIONS High Efficiency Linear Regulators  5V to 1.2V ,1.5V Linear Regulator  Power Management for Notebook  Batt

BM1122 General Description

The BM1122 is fixed voltage regulators are designed to provide 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference v.

BM1122 Datasheet (224.86 KB)

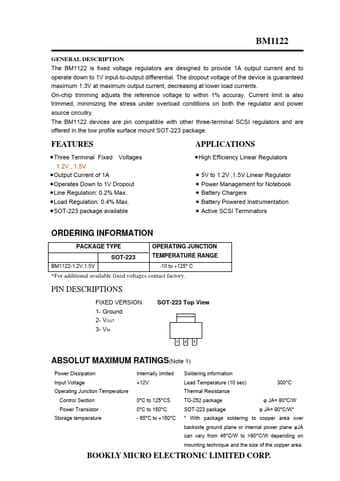

Preview of BM1122 PDF

Datasheet Details

Part number:

BM1122

Manufacturer:

Bookly Microelectronic

File Size:

224.86 KB

Description:

Fixed voltage regulators.
