BM1117A Datasheet - Bookly

BM1117A - Adjustable and fixed voltage regulator

The BM1117A series of adjustable and fixed voltage regulator are designed to provide0.8A output current and to operate down to 1V input-to-output differential.

The dropout voltage of the device is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents.

On-chip trimming

BM1117A Features

* APPLICATIONS Three Terminal Adjustable or Fixed Voltages

* 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V Output Current of 0.8A Up to +15V input max. Line Regulation: 0.2% Max. Load Regulation: 0.4% Max. SOT-223 and TO-252-2 package ava High Efficiency Linear Regulators Post Regul

BM1117A-Bookly.pdf

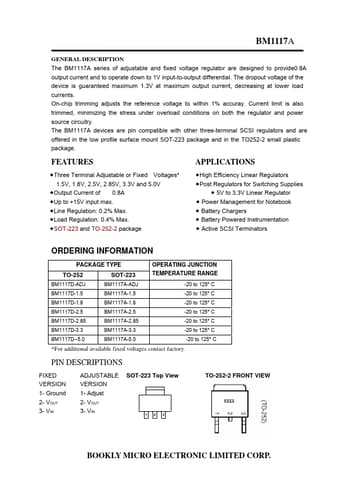

Preview of BM1117A PDF
BM1117A Datasheet Preview Page 2 BM1117A Datasheet Preview Page 3

Datasheet Details

Part number:

BM1117A

Manufacturer:

Bookly

File Size:

483.90 KB

Description:

Adjustable and fixed voltage regulator.
