Description

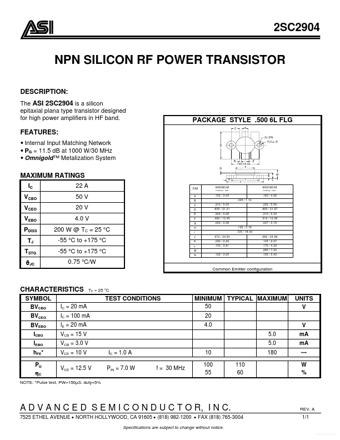

2SC2904 NPN SILICON RF POWER TRANSISTOR .
The ASI 2SC2904 is a silicon epitaxial plana type transistor designed for high power amplifiers in HF band. Internal Input Matchi.

📥 Download Datasheet

Preview of C2904 PDF

Datasheet Specifications

Part number
C2904
Manufacturer
ASI
File Size
41.19 KB
Datasheet
C2904-ASI.pdf
Description
2SC2904

Features

* Internal Input Matching Network
* PG = 11.5 dB at 1000 W/30 MHz
* Omnigold™ Metalization System MAXIMUM RATINGS IC 22 A VCBO 50 V VCEO 20 V VEBO 4.0 V PDISS 200 W @ TC = 25 °C TJ -55 °C to +175 °C TSTG -55 °C to +175 °C θJC 0.75 °C/W PACKAGE STYLE .500 6L FL
