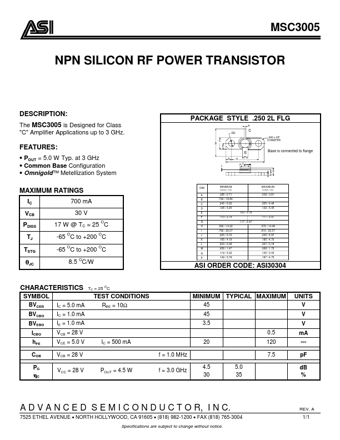

MSC3005 Datasheet, Transistor, ASI

MSC3005 Features

• Transistor
• POUT = 5.0 W Typ. at 3 GHz
• Common Base Configuration
• Omnigold™ Metellization System MAXIMUM RATINGS IC 700 mA VCB PDISS TJ 30 V 17 W @ TC = 25 OC -65

PDF File Details

Part number:

MSC3005

Manufacturer:

ASI

File Size:

14.41kb

Download:

📄 Datasheet

Description:

Npn silicon rf power transistor. The MSC3005 is Designed for Class "C" Amplifier Applications up to 3 GHz. FEATURES:

POUT = 5.0 W Typ. at 3 GHz

C

MSC3005 Application

• Applications up to 3 GHz. FEATURES:
• POUT = 5.0 W Typ. at 3 GHz
• Common Base Configuration
• Omnigold™ Metellization Syste
