MSC3003 Datasheet, Transistor, Advanced Semiconductor

MSC3003 Features

  • Transistor
  • PG = 6.0 dB min. at 3 W / 3,000 MHz
  • Difused Ballast Resistor
  • Omnigold™ Metalization System DIM A L G H J F I K M NP MINIMUM inches / mm MAXIMUM inche

PDF File Details

Part number:

MSC3003

Manufacturer:

Advanced Semiconductor

File Size:

33.65kb

Download:

📄 Datasheet

Description:

Npn silicon rf power transistor. The ASI MSC3003 is a common base transistor capable of providing 3.0 W Class-C RF output power @ 3.0 GHz. PACKAGE STYLE .250 2L FLG

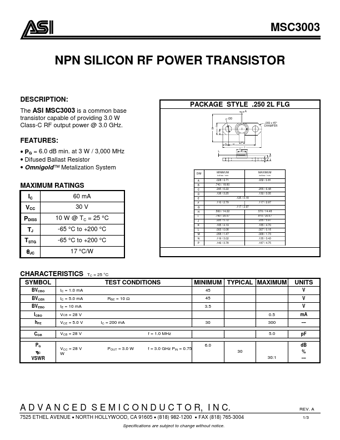

Datasheet Preview: MSC3003 📥 Download PDF (33.65kb)
Page 2 of MSC3003 Page 3 of MSC3003
