OSC-0.7L - NPN SILICON RF POWER TRANSISTOR

This page provides the datasheet information for the OSC-0.7L, a member of the OSC-0-7L NPN SILICON RF POWER TRANSISTOR family.

Datasheet Summary

Description

The ASI OSC-0.7L is Designed for General Purpose Oscillator Applications up to 1.68 GHz.

Features

  • VCC = 18 V.
  • Omnigold™ Metalization System.

📥 Download Datasheet

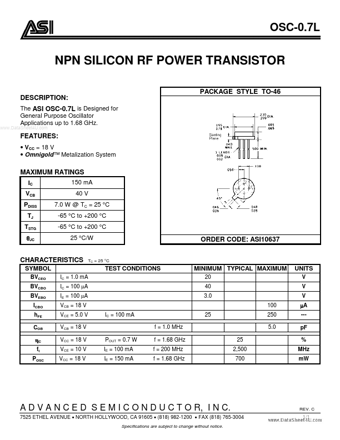

Datasheet preview – OSC-0.7L

Datasheet Details

Part number OSC-0.7L
Manufacturer ASI
File Size 45.31 KB
Description NPN SILICON RF POWER TRANSISTOR
Datasheet download datasheet OSC-0.7L Datasheet
Additional preview pages of the OSC-0.7L datasheet.

📁 Similar Datasheet

  • OSC-03C - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
  • OSC-07L - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
  • OSC-13SH - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
  • OSC-1A0 - (OSC-Series) Ultra Miniature TCXO (Vectron International)
  • OSC-1A1 - (OSC-Series) Ultra Miniature TCXO (Vectron International)
  • OSC-1A2 - (OSC-Series) Ultra Miniature TCXO (Vectron International)
  • OSC-1B0 - (OSC-Series) Ultra Miniature TCXO (Vectron International)
  • OSC-1B1 - (OSC-Series) Ultra Miniature TCXO (Vectron International)
  • OSC-1B2 - (OSC-Series) Ultra Miniature TCXO (Vectron International)
  • OSC-20SM - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
Other Datasheets by ASI

    Full PDF Text Transcription

    Click to expand full text
    OSC-0.7L NPN SILICON RF POWER TRANSISTOR DESCRIPTION: The ASI OSC-0.7L is Designed for General Purpose Oscillator Applications up to 1.68 GHz. PACKAGE STYLE TO-46 www.DataSheet4U.com FEATURES: • VCC = 18 V • Omnigold™ Metalization System MAXIMUM RATINGS IC VCB PDISS TJ TSTG θJC 150 mA 40 V 7.0 W @ TC = 25 °C -65 °C to +200 °C -65 °C to +200 °C 25 °C/W ORDER CODE: ASI10637 CHARACTERISTICS SYMBOL BVCEO BVCBO BVEBO ICBO hFE COB ηC ft POSC TC = 25 °C NONETEST CONDITIONS IC = 1.0 mA IC = 100 µA IE = 100 µA VCB = 18 V VCE = 5.0 V VCB = 18 V VCC = 18 V VCE = 10 V VCC = 18 V POUT = 0.7 W IE = 100 mA IE = 150 mA IC = 100 mA f = 1.0 MHz f = 1.68 GHz f = 200 MHz f = 1.68 GHz MINIMUM TYPICAL MAXIMUM 20 40 3.0 100 25 250 5.
