AX88172A - Low-pin-count USB 2.0 to 10/100M Fast Ethernet Controller

Product Overview

ASIX

Part number	AX88172A
Manufacturer	ASIX
File Size	1.68 MB
Description	Low-pin-count USB 2.0 to 10/100M Fast Ethernet Controller
Datasheet	AX88172A Datasheet
Note	This datasheet PDF includes multiple part numbers: AX88172A, AX88772A. Please refer to the document for exact specifications by model.

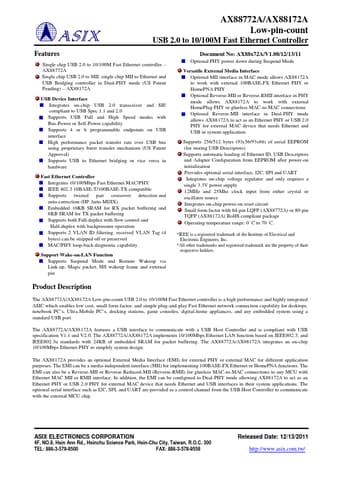

Additional preview pages of the AX88172A datasheet.

Single chip USB 2.0 to 10/100M Fast Ethernet controller.
AX88772A Single chip USB 2.0 to MII, single chip MII to Ethernet and USB Bridging controller in Dual-PHY mode (US Patent Pending).
AX88172A USB Device Interface Integrates on-chip USB 2.0 transceiver and SIE compliant to USB Spec 1.1 and 2.0 Supports USB Full and High Speed modes with Bus-Power or Self-Power capability Supports 4 or 6 programmable endpoints on USB interface High performance packet transfer rate over USB b.
