AP8102 SRS Mega WOW Audio Processor

Pin # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Pin Name GND VREF VREFB LIN RIN MWGAIN CGAIN LRGAIN PSPNTW LFCCON LFCFILI LFCI RFCI RFCFILI RFCCON TBIN TBSO TBFILO TBFILI TBCON LOUT ROUT MODE 24 VCC Descriptions Ground Reference voltage input Reference voltage output Left chan.

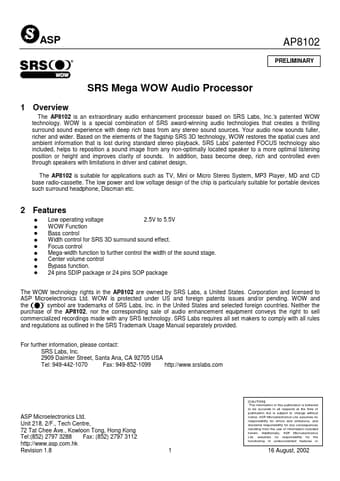

¡ ASP AP8102 PRELIMINARY SRS Mega WOW Audio Processor 1 Overview The AP8102 is an extraordinary audio enhancement processor based on SRS Labs, Inc.’s patented WOW technology. WOW is a special combination of SRS award-winning audio technologies that creates a thrilling surround sound experience with deep rich bass from any stereo sound sources. Your audio now sounds fuller, richer and wider. Based on the elements of the flagship SRS 3D technology, WOW restores the spatial cues and ambient inf.

AP8102 Features

* ¢ Low operating voltage 2.5V to 5.5V £ WOW Function £ Bass control £ Width control for SRS 3D surround sound effect. £ Focus control £ Mega-width function to further control the width of the sound stage. £ Center volume control £ Bypass function. £ 24 pins SDIP package or 24 pins SOP packa
