45DB041B Datasheet - ATMEL Corporation

4-megabit 2.5-volt Only or 2.7-volt Only DataFlash

45DB041B Features

* Single 2.5V - 3.6V or 2.7V - 3.6V Supply Serial Peripheral Interface (SPI) Compatible 20 MHz Max Clock Frequency Page Program Operation

* Single Cycle Reprogram (Erase and

45DB041B General Description

The AT45DB041B is a 2.5-volt or 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 4,325,376 bits of memory are organized as 2048 pages of 264 bytes each. In addition to the main memory, the AT45D.

45DB041B Datasheet (233.48 KB)

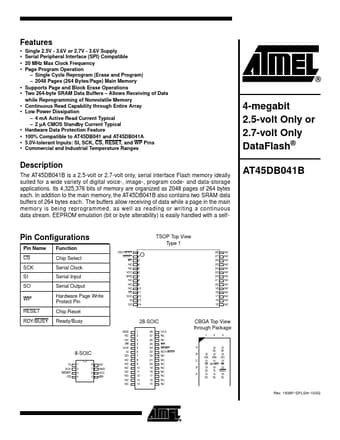

45DB041B Datasheet Preview — Preview of 45DB041B PDF

Datasheet Details

Part number:

45DB041B

Manufacturer:

ATMEL Corporation

File Size:

233.48 KB

Description:

4-megabit 2.5-volt only or 2.7-volt only dataflash.
