45DB161E - AT45DB161E

45DB161E Description

AT45DB161E 16-Mbit DataFlash (with Extra 512-Kbits), 2.3V or 2.5V Minimum SPI Serial Flash Memory DATASHEET .
The Adesto® AT45DB161E is a 2.

45DB161E Features

* Single 2.3V - 3.6V or 2.5V - 3.6V supply
* Serial Peripheral Interface (SPI) compatible
* Supports SPI modes 0 and 3 Supports RapidS™ operation Up to 85MHz Low-power read option up to 15MHz Clock

45DB161E Applications

* The AT45DB161E also supports the RapidS serial interface for applications requiring very high speed operation. Its 17,301,504 bits of memory are organized as 4,096 pages of 512 bytes or 528 bytes each. In addition to the main memory, the AT45DB161E also contains two SRAM buffers of 512/528 bytes ea

📥 Download Datasheet

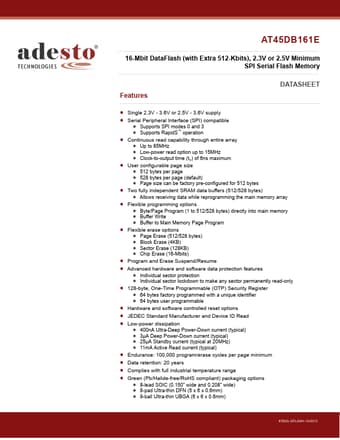

Preview of 45DB161E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
45DB161E
Manufacturer
Adesto
File Size
1.06 MB
Datasheet
45DB161E-Adesto.pdf
Description
AT45DB161E
