80C32E - Rad. Tolerant 8-bit ROMless Microcontroller

Datasheet Summary

Description

The 80C32E is a radiation tolerant ROMless version of the 80C52 single chip 8-bit microcontroller.

Features

  • 8032 Pin and Instruction Compatible Four 8-bit I/O Ports Three 16-bit Timer/Counters 256 bytes RAM Full-duplex UART Asynchronous Port Reset 6 Sources, 2 Level Interrupt Structure 64 Kbytes Program Memory Space 64 Kbytes Data Memory Space Power Control Modes Idle Mode Power-down Mode On-chi.

📥 Download Datasheet

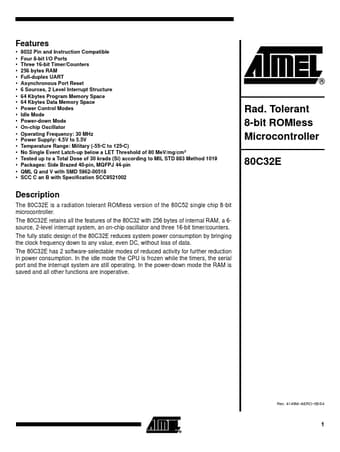

Datasheet preview – 80C32E

Datasheet Details

Part number 80C32E
Manufacturer ATMEL Corporation
File Size 298.56 KB
Description Rad. Tolerant 8-bit ROMless Microcontroller
Datasheet download datasheet 80C32E Datasheet
Additional preview pages of the 80C32E datasheet.

📁 Similar Datasheet

  • 80C32 - 8-bit microcontroller (NXP)
  • 80C32 - CMOS 0 to 44 MHz Single-chip 8 Bit Microcontroller (TEMIC Semiconductors)
  • 80C32 - CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER (Advanced Analogic Technologies)
  • 80C32-16 - CMOS Single-Chip 8-Bit Microcontroller (Philips)
  • 80C32X2 - 80C51 8-bit microcontroller (NXP)
  • 80C31 - 8-bit microcontroller (NXP)
  • 80C31BH - CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER (Intel Corporation)
  • 80C31X2 - 80C51 8-bit microcontroller family 4K/8K/16K/32K ROM/OTP 128B/256B RAM low voltage 2.7 to 5.5 V/ low power/ high speed 30/33 MHz (NXP)
  • 80C34X2 - 80C51 8-bit microcontroller (NXP)
  • 80C35 - CMOS 8-BIT SINGLE-CHIP MICROCOMPUTER (Toshiba)
Other Datasheets by ATMEL Corporation

    Full PDF Text Transcription

    Click to expand full text
    Features • • • • • • • • • • • • • • • • • • • • • 8032 Pin and Instruction Compatible Four 8-bit I/O Ports Three 16-bit Timer/Counters 256 bytes RAM Full-duplex UART Asynchronous Port Reset 6 Sources, 2 Level Interrupt Structure 64 Kbytes Program Memory Space 64 Kbytes Data Memory Space Power Control Modes Idle Mode Power-down Mode On-chip Oscillator Operating Frequency: 30 MHz Power Supply: 4.5V to 5.5V Temperature Range: Military (-55oC to 125oC) No Single Event Latch-up below a LET Threshold of 80 MeV/mg/cm 2 Tested up to a Total Dose of 30 krads (Si) according to MIL STD 883 Method 1019 Packages: Side Brazed 40-pin, MQFPJ 44-pin QML Q and V with SMD 5962-00518 SCC C an B with Specification SCC9521002 Rad.
