80C31BH - CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

Datasheet Summary

Description

VCC Supply voltage during normal Idle and Power Down operations VSS Circuit ground VSS1 VSS1 (EPROM PLCC only) secondary ground Provided to reduce ground bounce and improve power supply bypassing NOTE This pin is not a substitute for the VSS pin (pin 22) For ROM and ROMless pin 1 is reserved do not

Features

4 Kbytes of EPROM ROM (87C51 80C51BH respectively) 128 bytes of RAM 32 I O lines two 16-bit timer counters a five-source two-level interrupt structure a full duplex serial port and on-chip oscillator and clock circuitry In addition the MCS 51 CHMOS microcontroller products exhibit low operating power along with two software selectable modes of reduced activity for further power reduction Idle and Power Down The Idle mode freezes the CPU while allowing the RAM timer counters serial port and inter.

Datasheet Details

Part number	80C31BH
Manufacturer	Intel Corporation
File Size	229.47 KB
Description	CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER
Datasheet	80C31BH Datasheet
Additional preview pages of the 80C31BH datasheet.

📁 Similar Datasheet

80C31 - 8-bit microcontroller (NXP)

80C31X2 - 80C51 8-bit microcontroller family 4K/8K/16K/32K ROM/OTP 128B/256B RAM low voltage 2.7 to 5.5 V/ low power/ high speed 30/33 MHz (NXP)

80C32 - 8-bit microcontroller (NXP)

80C32 - CMOS 0 to 44 MHz Single-chip 8 Bit Microcontroller (TEMIC Semiconductors)

80C32 - CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER (Advanced Analogic Technologies)

80C32-16 - CMOS Single-Chip 8-Bit Microcontroller (Philips)

80C32E - Rad. Tolerant 8-bit ROMless Microcontroller (ATMEL Corporation)

80C32X2 - 80C51 8-bit microcontroller (NXP)

80C34X2 - 80C51 8-bit microcontroller (NXP)

80C35 - CMOS 8-BIT SINGLE-CHIP MICROCOMPUTER (Toshiba)

Full PDF Text Transcription

Click to expand full text

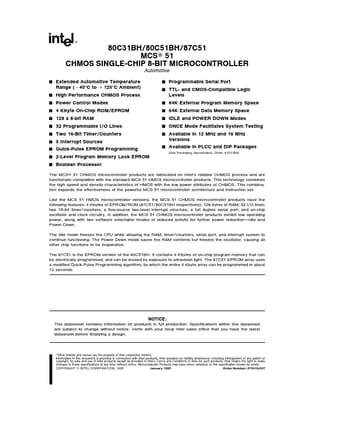

80C31BH 80C51BH 87C51 MCS 51 CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER Automotive Y Extended Automotive Temperature Range ( b 40 C to a 125 C Ambient) High Performance CHMOS Process Power Control Modes 4 Kbyte On-Chip ROM EPROM 128 x 8-bit RAM 32 Programmable I O Lines Two 16-Bit Timer Counters 5 Interrupt Sources Quick-Pulse EPROM Programming 2-Level Program Memory Lock EPROM Boolean Processor Y Y Programmable Serial Port TTL- and CMOS-Compatible Logic Levels 64K External Program Memory Space 64K External Data Memory Space IDLE and POWER DOWN Modes ONCE Mode Facilitates System Testing Available in 12 MHz and 16 MHz Versions Available in PLCC and DIP Packages (See Packaging Specification Order 231369) Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y The MCS 51 CHMOS microcontroller products are fabric
