AT24MAC402 2-Kbit Serial EEPROM

AT24MAC402 Description

AT24MAC402 and AT24MAC602 I2C-Compatible (2-wire) 2-Kbit Serial EEPROM with a Factory-Programmed EUI-48™ or EUI-64™Address Plus an Embedded Unique 128.
The Atmel AT24MAC402 and AT24MAC602 provides 2048 bits of Serial Electrically-Erasable Programmable Read-Only Memory (EEPROM) organized as 256 words o.

AT24MAC402 Features

* DATASHEET
* Low-voltage Operation ̶ 1.7V Minimum (VCC = 1.7V to 5.5V)
* Internally Organized as 256 x 8 (2K)
* I2C-compatible (2-wire) Serial Interface
* Schmitt Trigger, Filtered Inputs for Noise Suppression
* Bi-directional Data Transfer Protocol
* 400kHz (1.7V) and 1MHz

AT24MAC402 Applications

* where low-power and low-voltage operations are essential. The AT24MAC402/602 is available in space saving 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, and 5-lead SOT23 packages. Both devices operate across a wide supply voltage range from 1.7V to 5.5V VCC. 2 AT24MAC402/602 [DATASHEET] Atmel-8807E-SE

📥 Download Datasheet

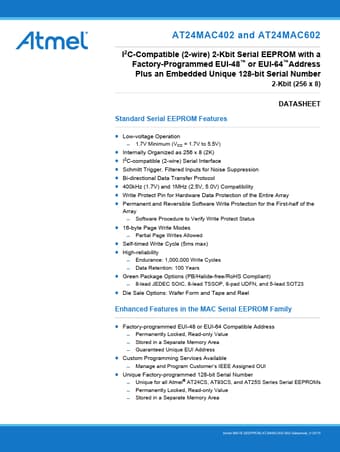

Preview of AT24MAC402 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT24MAC402
Manufacturer
ATMEL Corporation
File Size
538.80 KB
Datasheet
AT24MAC402-ATMELCorporation.pdf
Description
2-Kbit Serial EEPROM
