AT25DF321 - 32M-Bit Serial Firmware Dataflash Memory

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT25DF321
Manufacturer	ATMEL Corporation
File Size	831.49 KB
Description	32M-Bit Serial Firmware Dataflash Memory
Datasheet	AT25DF321 Datasheet

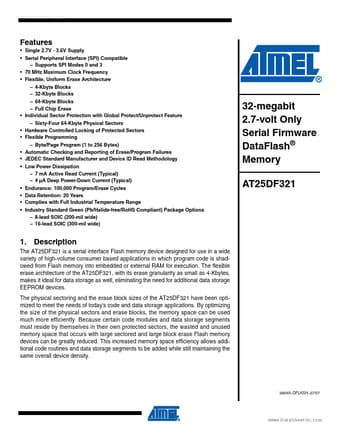

Additional preview pages of the AT25DF321 datasheet.

Product details

Description

The AT25DF321 is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution.

Features

Single 2.7V - 3.6V Supply.
Serial Peripheral Interface (SPI) Compatible.
Supports SPI Modes 0 and 3.
70 MHz Maximum Clock Frequency.
Flexible, Uniform Erase Architecture.
4-Kbyte Blocks.
32-Kbyte Blocks.
64-Kbyte Blocks.
Full Chip Erase Individual Sector Protection with Global Protect/Unprotect Feature.
Sixty-Four 64-Kbyte Physical Sectors Hardware Controlled Locking of Protected Sectors Flexible Programm.
