AT25010 - SPI Serial EEPROMs

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT25010
Manufacturer	ATMEL Corporation
File Size	151.17 KB
Description	SPI Serial EEPROMs
Datasheet	AT25010 Datasheet

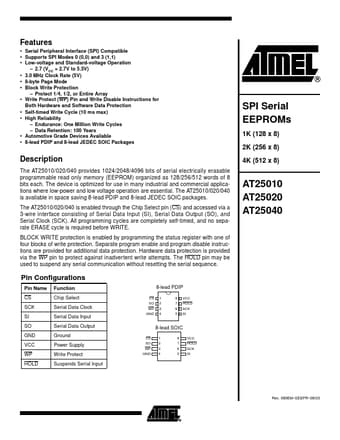

Additional preview pages of the AT25010 datasheet.

Product details

Description

The AT25010/020/040 provides 1024/2048/4096 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 128/256/512 words of 8 bits each.

Features

Serial Peripheral Interface (SPI) Compatible.
Supports SPI Modes 0 (0,0) and 3 (1,1).
Low-voltage and Standard-voltage Operation.
2.7 (VCC = 2.7V to 5.5V).
3.0 MHz Clock Rate (5V).
8-byte Page Mode.
Block Write Protection.
Protect 1/4, 1/2, or Entire Array.
Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection.
Self-timed Write Cycle (10 ms max).
High.
