AT25040B SPI Serial EEPROM

The Atmel® AT25010B/020B/040B provides 1,024/2,048/4,096 bits of Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as 128/256/512 words of 8 bits each. The device is optimized for use in many indus.

AT25040B Features

* Serial Peripheral Interface (SPI) Compatible

* Supports SPI Modes 0 (0,0) and 3 (1,1) ̶ Data Sheet Describes Mode 0 Operation

* Low-voltage and Standard-voltage Operation ̶ VCC = 1.8V to 5.5V

* 20MHz Clock Rate (5V)

* 8-byte Page Mode

* Block Write Protection ̶ Protect 1/4,

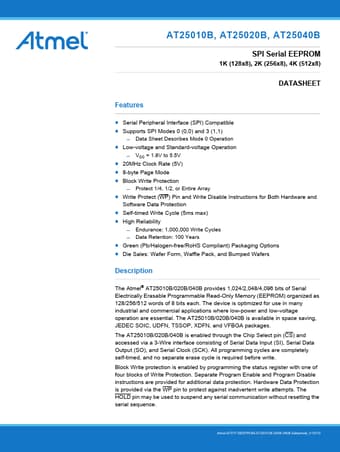

AT25010B-ATMEL.pdf

AT25040B Datasheet Preview — This datasheet PDF includes multiple part numbers: AT25040B, AT25010B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AT25040B, AT25010B

Manufacturer:

ATMEL

File Size:

449.98 KB

Description:

Spi serial eeprom.

Note:

This datasheet PDF includes multiple part numbers: AT25040B, AT25010B.
Please refer to the document for exact specifications by model.
