AT25020 SPI Serial EEPROMs

The AT25010/020/040 provides 1024/2048/4096 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 128/256/512 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low voltage operation are essenti.

AT25020 Features

* Serial Peripheral Interface (SPI) Compatible

* Supports SPI Modes 0 (0,0) and 3 (1,1)

* Low-voltage and Standard-voltage Operation

* 2.7 (VCC = 2.7V to 5.5V)

* 3.0 MHz Clock Rate (5V)

* 8-byte Page Mode

* Block Write Protection

* Prot

AT25020_ATMELCorporation.pdf

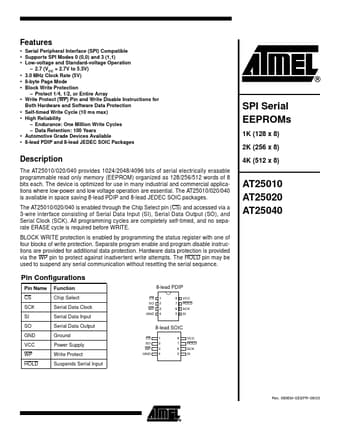

AT25020 Datasheet Preview — Preview of AT25020 PDF

Datasheet Details

Part number:

AT25020

Manufacturer:

ATMEL Corporation

File Size:

151.17 KB

Description:

Spi serial eeproms.
