AT42QT1011 Datasheet - ATMEL Corporation

AT42QT1011 - One-channel Touch Sensor

Pin Listing Pin 1 2 3 4 5 6 Type O P I/O I/O P I Comments Output state Supply ground Sense pin Sense pin Power SYNC and Mode Input * * Cs + Key Cs * Pin is either SYNC/Slow/Fast Mode, depending on logic level applied (see Section 3.1 on page 4) I/O P Input and output Ground

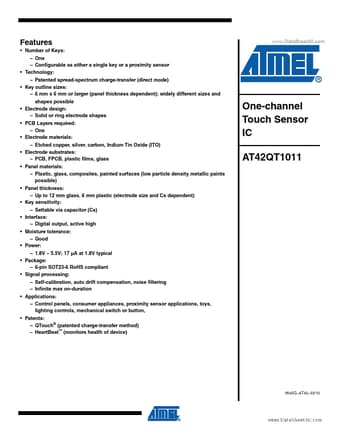

AT42QT1011 Features

* Number of Keys:

* One

* Configurable as either a single key or a proximity sensor Technology:

* Patented spread-spectrum charge-transfer (direct mode) Key outline sizes:

* 6 mm x 6 mm or larger (panel thickness dependent); widely different sizes and shapes p

AT42QT1011_ATMELCorporation.pdf

Preview of AT42QT1011 PDF
AT42QT1011 Datasheet Preview Page 2 AT42QT1011 Datasheet Preview Page 3

Datasheet Details

Part number:

AT42QT1011

Manufacturer:

ATMEL Corporation

File Size:

353.55 KB

Description:

One-channel touch sensor.
