AT45DB041 4-Megabit 2.7-volt Only Serial DataFlash

The AT45DB041 is a 2.7-volt only, serial interface Flash memory suitable for in-system reprogramming. Its 4,325,376 bits of memory are organized as 2048 pages of 264-bytes each. In addition to the main memory, the AT45DB041 also contains two SRAM data buffers of 264-bytes each. The buffers allow rec.

AT45DB041 Features

* Single 2.7V - 3.6V Supply

* Serial Interface Architecture

* Page Program Operation

* Single Cycle Reprogram (Erase and Program)

* 2048 Pages (264 Bytes/Page)

AT4-5DB-041.pdf

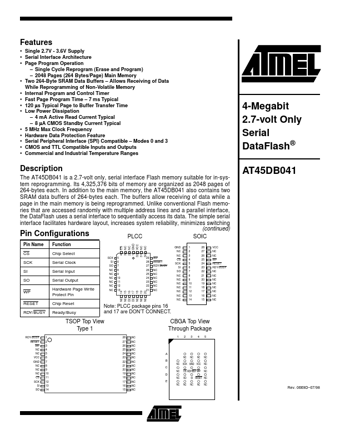

AT45DB041 Datasheet Preview — This datasheet PDF includes multiple part numbers: AT45DB041, AT4-5DB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AT45DB041, AT4-5DB

Manufacturer:

ATMEL Corporation

File Size:

209.38 KB

Description:

4-megabit 2.7-volt only serial dataflash.

Note:

This datasheet PDF includes multiple part numbers: AT45DB041, AT4-5DB.
Please refer to the document for exact specifications by model.
