AT45DB021E - SPI Serial Flash Memory

AT45DB021E Description

AT45DB021E 2-Mbit DataFlash (with Extra 64-Kbits), 1.65V Minimum SPI Serial Flash Memory .
The Adesto® AT45DB021E is a 1.

AT45DB021E Features

* Single 1.65V - 3.6V supply
* Serial Peripheral Interface (SPI) compatible
* Supports SPI modes 0 and 3
* Supports RapidS™ operation
* Continuous read capability through entire array
* Up to 85MHz
* Low-power read option up to 15MHz
* Clock-to-output time (tV) of 6ns

AT45DB021E Applications

* The AT45DB021E also supports the RapidS serial interface for applications requiring very high speed operation. Its 2,162,688 bits of memory are organized as 1,024 pages of 256 bytes or 264 bytes each. In addition to the main memory, AT45DB021E also contains one SRAM buffer of 256/264 bytes. The Buf

📥 Download Datasheet

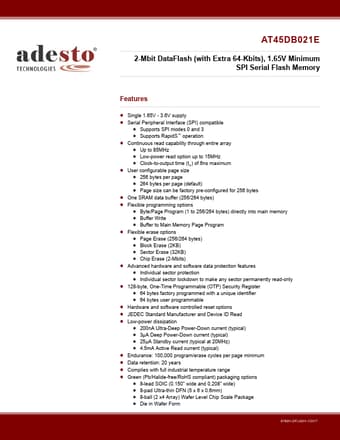

Preview of AT45DB021E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT45DB021E
Manufacturer
Adesto
File Size
2.38 MB
Datasheet
AT45DB021E-Adesto.pdf
Description
SPI Serial Flash Memory
