AT5FC001 - 1-Megabyte Flash Memory PCMCIA Card

Datasheet Summary

Description

Atmel’s Flash Memory Card provides the highest system level performance for data and file storage solutions to the portable PC market segment.

Data files and applications programs can be stored on the AT5FC001.

Features

  • es Single Power Supply Read and Write Voltage, 5 V ± 5% High Performance 200 ns Maximum Access Time 6 ms Typical Sector Write CMOS Low Power Consumption 20 mA Typical Active Current (Byte Mode) 400 µA Typical Standby Current Fully MS-DOS Compatible Flash Driver and Formatter Virtual-Disk Flash Driver with 256 Bytes/Sector Random Read/Write to any Sector No Erase Operation Required Prior to any Write Zero Data Retention Power Batteries not Required for Data Storage PCMCIA/JEIDA 68-Pin Standard Se.

📥 Download Datasheet

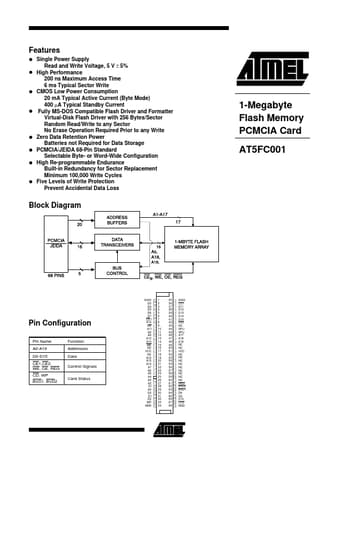

Datasheet preview – AT5FC001

Datasheet Details

Part number AT5FC001
Manufacturer ATMEL Corporation
File Size 575.42 KB
Description 1-Megabyte Flash Memory PCMCIA Card
Datasheet download datasheet AT5FC001 Datasheet
Additional preview pages of the AT5FC001 datasheet.

📁 Similar Datasheet

  • AT5004 - ADSL Transformer (BESTJOB)
  • AT5009 - ADSL Transformer (BESTJOB)
  • AT5018 - ADSL Transformer (BESTJOB)
  • AT5020 - Multilayer Chip Antenna (ACX)
  • AT503 - PHASE CONTROL THYRISTOR (Power Semiconductors)
  • AT503S16 - PHASE CONTROL THYRISTOR (Power Semiconductors)
  • AT505 - PHASE CONTROL THYRISTOR (Power Semiconductors)
  • AT5050 - ADSL Line Transformer (BESTJOB)
  • AT5050-71-108-C - GPS Module (ATC)
  • AT505S16 - PHASE CONTROL THYRISTOR (Power Semiconductors)
Other Datasheets by ATMEL Corporation
  • AT5FC001-20 - 1-Megabyte Flash Memory PCMCIA Card
  • AT5FC002 - 2-Megabyte Flash Memory PCMCIA Card
  • AT5FC002-20 - 2-Megabyte Flash Memory PCMCIA Card
  • AT5FC004 - 4-Megabyte Flash Memory PCMCIA Card
  • AT5FC004-20 - 4-Megabyte Flash Memory PCMCIA Card
  • AT5FC008 - 8-Megabyte Flash Memory PCMCIA Card
  • AT5FC008-20 - 8-Megabyte Flash Memory PCMCIA Card
  • AT5FC256 - 256K byte Flash Memory PCMCIA Card

Full PDF Text Transcription

Click to expand full text
• • • • • • • • Features Single Power Supply Read and Write Voltage, 5 V ± 5% High Performance 200 ns Maximum Access Time 6 ms Typical Sector Write CMOS Low Power Consumption 20 mA Typical Active Current (Byte Mode) 400 µA Typical Standby Current Fully MS-DOS Compatible Flash Driver and Formatter Virtual-Disk Flash Driver with 256 Bytes/Sector Random Read/Write to any Sector No Erase Operation Required Prior to any Write Zero Data Retention Power Batteries not Required for Data Storage PCMCIA/JEIDA 68-Pin Standard Selectable Byte- or Word-Wide Configuration High Re-programmable Endurance Built-in Redundancy for Sector Replacement Minimum 100,000 Write Cycles Five Levels of Write Protection Prevent Accidental Data Loss 1-Megabyte Flash Memory PCMCIA Card AT5FC001 Block Diagram Pin Confi
