AT5FC002 - 2-Megabyte Flash Memory PCMCIA Card

ATMEL Corporation

The AT5FC002 by ATMEL Corporation is a 2-Megabyte Flash Memory PCMCIA Card. Below is the official datasheet preview.

Datasheet Details

Part number	AT5FC002
Manufacturer	ATMEL Corporation
File Size	715.59 KB
Description	2-Megabyte Flash Memory PCMCIA Card
Datasheet	AT5FC002_ATMELCorporation.pdf

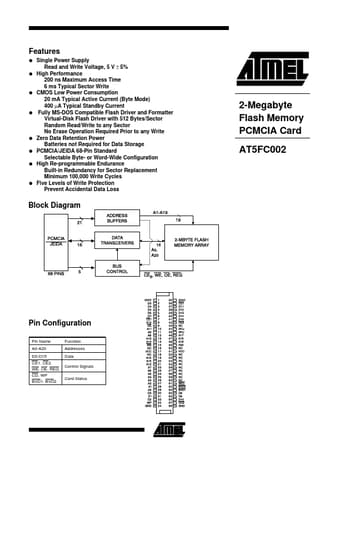

Additional preview pages of the AT5FC002 datasheet.

Atmel’s Flash Memory Card provides the highest system level performance for data and file storage solutions to the portable PC market segment.

es Single Power Supply Read and Write Voltage, 5 V ± 5% High Performance 200 ns Maximum Access Time 6 ms Typical Sector Write CMOS Low Power Consumption 20 mA Typical Active Current (Byte Mode) 400 µA Typical Standby Current Fully MS-DOS Compatible Flash Driver and Formatter Virtual-Disk Flash Driver with 512 Bytes/Sector Random Read/Write to any Sector No Erase Operation Required Prior to any Write Zero Data Retention Power Batteries not Required for Data Storage PCMCIA/JEIDA 68-Pin Standard Se.
