AT71200M - 8M-pixel Color Image Sensor

Product Overview

ATMEL Corporation

📥 Download Datasheet

AT71200M 8M-pixel Color Image Sensor by ATMEL Corporation - Datasheet Preview — Datasheet preview – AT71200M

Datasheet Details

Part number	AT71200M
Manufacturer	ATMEL Corporation
File Size	316.41 KB
Description	8M-pixel Color Image Sensor
Datasheet	AT71200M Datasheet

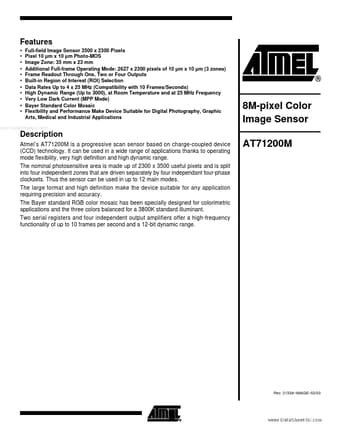

Additional preview pages of the AT71200M datasheet.

Product details

Description

Atmel’s AT71200M is a progressive scan sensor based on charge-coupled device (CCD) technology.

Features

Full-field Image Sensor 3500 x 2300 Pixels Pixel 10 µm x 10 µm Photo-MOS Image Zone: 35 mm x 23 mm Additional Full-frame Operating Mode: 2627 x 2300 pixels of 10 µm x 10 µm (3 zones) Frame Readout Through One, Two or Four Outputs Built-in Region of Interest (ROI) Selection Data Rates Up to 4 x 25 MHz (Compatibility with 10 Frames/Seconds) High Dynamic Range (Up to 3000), at Room Temperat.
