AT71201M

full-frame sensor based on charge-coupled device (CCD) technology

AT71201M Features

* Full-Frame Image Sensor 4096 x 4096 Pixels 11 µm x 11 µm Photo-MOS Pixel with 100% Aperture Image Zone: 45 x 45 mm Frame Readout Through One, Two or Four Outputs Data Rates Up to 4 x 40 MHz (Compatibility with 7, 4 Frames/Second) True 12-bit High Dynamic Range Very Low Readout Noise Very Low Dark Cu

AT71201M General Description

Atmel's AT71201M is a full-frame sensor based on charge-coupled device (CCD) technology. It can be used in a wide range of applications thanks to operating mode flexibility, very high definition and high dynamic range. The nominal photosensitive area is made up of 4096 x 4096 useful pixels and is sp.

AT71201M Datasheet (471.63 KB)

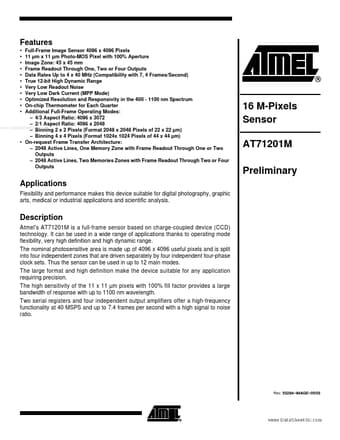

Preview of AT71201M PDF

Datasheet Details

Part number:

AT71201M

Manufacturer:

ATMEL Corporation

File Size:

471.63 KB

Description:

Full-frame sensor based on charge-coupled device (ccd) technology.
