AT80C5112 - 8-bit Microcontroller

Product Overview

ATMEL Corporation

Part number	AT80C5112
Manufacturer	ATMEL Corporation
File Size	1.20 MB
Description	8-bit Microcontroller
Datasheet	AT80C5112 Datasheet
Note	This datasheet PDF includes multiple part numbers: AT80C5112, AT8. Please refer to the document for exact specifications by model.

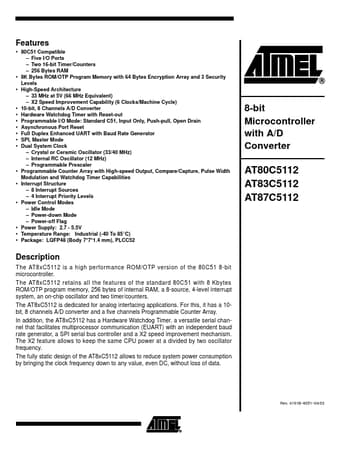

Additional preview pages of the AT80C5112 datasheet.

The AT8xC5112 is a high performance ROM/OTP version of the 80C51 8-bit microcontroller.

80C51 Compatible.
Five I/O Ports.
Two 16-bit Timer/Counters.
256 Bytes RAM 8K Bytes ROM/OTP Program Memory with 64 Bytes Encryption Array and 3 Security Levels High-Speed Architecture.
33 MHz at 5V (66 MHz Equivalent).
X2 Speed Improvement Capability (6 Clocks/Machine Cycle) 10-bit, 8 Channels A/D Converter Hardware Watchdog Timer with Reset-out Programmable I/O Mode: Standard C51, Input Only, Push-pull, Open Drain Asynchronous Port Reset Fu.
