AT83C21GC

GemCore Serial Lite PRO

AT83C21GC Features

* Smart Card Interface

* Compliance with Standards

* ISO/IEC 7816-1, 2, 3 and 4

* EMV V96

* CB

* Mondex®, Proton, ZKA, Other: Contact Gemplus®

* Supported Smart Cards

* Number of Smart Cards Supported: 1

* Asynchronous Cards: T=

AT83C21GC General Description

AT83C21GC is designed to simplify the integration of smart card interfaces in electronic devices. It manages the electrical interface and communication with ISO 7816

*1/2/3/4 compatible smart cards and memory cards. Figure 1. Basic Architecture of a Smart Card Reader Host Processor AT83C21.

AT83C21GC Datasheet (64.97 KB)

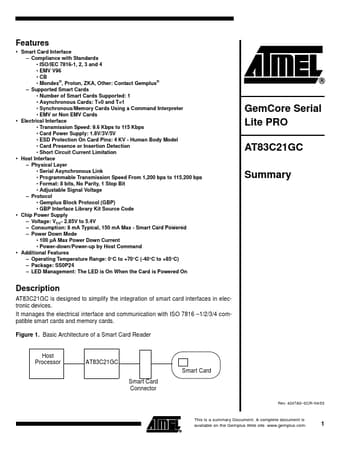

Preview of AT83C21GC PDF

Datasheet Details

Part number:

AT83C21GC

Manufacturer:

ATMEL Corporation

File Size:

64.97 KB

Description:

Gemcore serial lite pro.
