AT87C51RC2, AT80C51RA2 - High Performance 8-bit Microcontroller

ATMEL Corporation

📥 Download Datasheet

AT87C51RC2 Datasheet Preview — This datasheet PDF includes multiple part numbers: AT87C51RC2, AT80C51RA2. Please refer to the document for exact specifications by model.

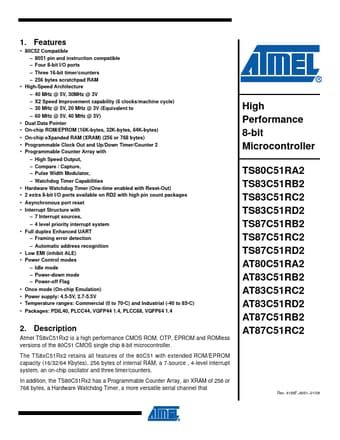

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AT87C51RC2, AT80C51RA2
Manufacturer	ATMEL Corporation
File Size	788.18 KB
Description	High Performance 8-bit Microcontroller
Datasheet	AT80C51RA2_ATMELCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: AT87C51RC2, AT80C51RA2. Please refer to the document for exact specifications by model.

AT87C51RC2 Product details

Description

Atmel TS8xC51Rx2 is a high performance CMOS ROM, OTP, EPROM and ROMless versions of the 80C51 CMOS single chip 8-bit microcontroller.

Features

80C52 Compatible.
8051 pin and instruction compatible.
Four 8-bit I/O ports.
Three 16-bit timer/counters.
256 bytes scratchpad RAM.
High-Speed Architecture.
40 MHz @ 5V, 30MHz @ 3V.
X2 Speed Improvement capability (6 clocks/machine cycle).
30 MHz @ 5V, 20 MHz @ 3V (Equivalent to.
60 MHz @ 5V, 40 MHz @ 3V).
Dual Data Pointer.
On-chip ROM/EPROM (16K-bytes, 32K-bytes, 64K-bytes).
On.
