AT88SA100S, Battery Authentication

Atmel AT88SA100S Atmel CryptoAuthentication Battery Authentication Chip DATASHEET Not Recommended for New Designs Replaced by ATSHA204 .
Each bit, when zero, locks the current value of the corresponding 16-bit block of the fuse array, see below for more details.

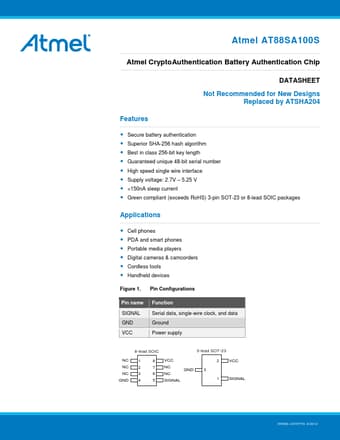

datasheet Preview Page 1 from Datasheet4u.com

AT88SA100S_ATMELCorporation.pdf

AT88SA100S Datasheet Preview — Preview of AT88SA100S PDF

Datasheet Details

Part number:

AT88SA100S

Manufacturer:

ATMEL Corporation

File Size:

240.81 KB

Description:

Battery Authentication

Features

* Secure battery authentication
* Superior SHA-256 hash algorithm
* Best in class 256-bit key length
* Guaranteed unique 48-bit serial number
* High speed single wire interface
* Supply voltage: 2.7V
* 5.25 V

Applications

* Cell phones
* PDA and smart phones
* Portable media players
* Digital cameras & camcorders
* Cordless tools
* Handheld devices Figure 1. Pin Configurations Pin name SIGNAL GND VCC Function Serial data, single-wire clock, and data Ground Power supp
