ATF1500A - High-performance EPLD

Datasheet Summary

Features

  • High-density, High-performance Electrically-erasable Complex Programmable Logic Device.
  • 44-pin, 32 I/O CPLD.
  • 7.5 ns Maximum Pin-to-pin Delay.
  • Registered Operation Up to 125 MHz.
  • Fully Connected Input and Feedback Logic Array.
  • Backward Compatibility with ATF1500/L Software and Hardware.
  • Flexible Logic Macrocell.
  • D/T/Latch Configurable Flip-flops.
  • Global and Individual Register Control Signals.
  • Global and In.

📥 Download Datasheet

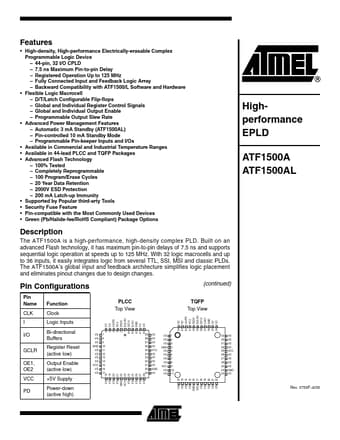

Datasheet preview – ATF1500A

Datasheet Details

Part number ATF1500A
Manufacturer ATMEL Corporation
File Size 464.46 KB
Description High-performance EPLD
Datasheet download datasheet ATF1500A Datasheet
