ATF1504SE

EEPROM

ATF1504SE Features

* 2nd Generation EE PROM-based Complex Programmable Logic Devices

* VCCIO of 5.0V or 3.3V with 3.3V Operation being 5V Tolerant

* 32 - 256 Macrocells with Enhanced Features

* Pin-compatible with Industry Standard Devices

* Speeds to 5 ns Maximum Pin-to-pin Del

ATF1504SE General Description

Beginning with the introduction of the 100% connected ATF1500 with 32 enhanced macrocells in 1996, Atmel’s CPLD products have delivered extra IO connectivity and logic reusability. Atmel’s commitment to efficient, flexible architecture has continued with the current Atmel ATF15xxSE Family of indust.

ATF1504SE Datasheet (938.16 KB)

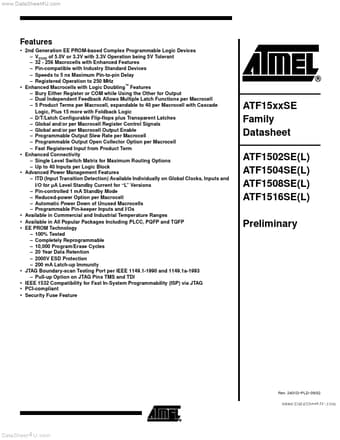

Preview of ATF1504SE PDF

Datasheet Details

Part number:

ATF1504SE

Manufacturer:

ATMEL Corporation

File Size:

938.16 KB

Description:

Eeprom.
